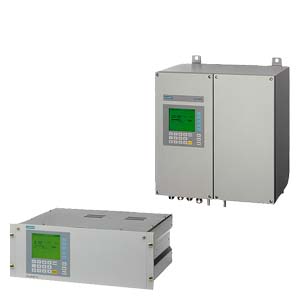

The uniform operating concept simply offers more possibilities: The modular gas analyzer SIPROCESS GA700 has three housing types and the flexibility of three mix-and-match modules to choose from. This means you can use rack or wall-mounted housings and can combine two of the three modules OXYMAT 7, ULTRAMAT 7, or CALOMAT 7. SIPROCESS GA700 with its impressively reliable measurements, is optimized for a variety of applications, and is equipped with device internal interfering gas correction. Commissioning is also very simple thanks to the Plug & Measure principle: You just insert the modules, connect the cables, switch on, and measure. As soon as the modules are installed, they are automatically configured in their basic settings. Gas analysis with the SIPROCESS GA700 means high service friendliness and a uniform operating concept. Gas analysis has never been easier.

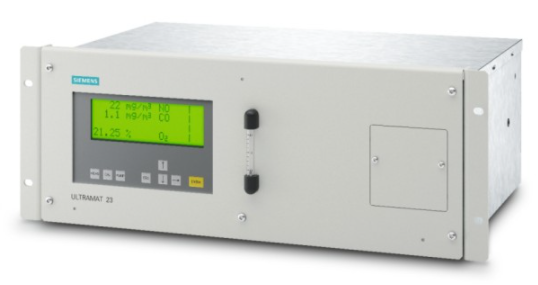

Ultramat-23
the latest generation of
Continuous Process Gas Analytics

The ULTRAMAT 23 is an innovative multi-component gas analyzer and can be equipped with the following sensors: IR detector for IR-active gases, UV photometer for UV-active gases, H2S sensor (electrochemical), O2 sensor (electrochemical or paramagnetic), and used accordingly in numerous applications and industries. The integrated automatic calibration function using ambient air is a unique advantage. This means that a test with calibration gases is only necessary once a year. Menu-guided operation in plain text allows users and service personnel to operate the device immediately. Preventive maintenance is made possible by the information in the logbook.

Benefits:
• Highly cost-effective because calibration gases are not required (AUTOCAL with ambient air, depending on the measuring component)
• High selectivity due to multilayer detectors e.g. low cross-sensitivity to water vapor
• Cleanable cuvettes: Cost savings through further use in case of contamination
• Menu-guided operation in plain text
• Open interface architecture (RS 485, RS 232; PROFIBUS, SIPROM GA): Simplified process integration; remote operation and control

Calomat 6
Gas Analyzer

The CALOMAT 6 gas analyzer is primarily used for quantitative determination of H2 or He in digital or quasi-digital non-corrosive gas mixtures.
Concentrations of other gases can also be measured if their thermal conductivities differ significantly from the residual gases like Ar, CO2, CH4, NH3.

Benefits :
• Small T90 time due to micromechanical-produced Si sensor
• Universally applicable hardware basis, high measuring range dynamics (e.g. 0 to 1 %, 0 to 100 %, 95 to 100 % H2)
• Integrated correction of cross-interference, no external calculation required
• Open interface architecture (RS 485, RS 232, PROFIBUS)
• SIPROM GA network for maintenance and service information (option)
• Electronics and physics: gas-tight separation, purgeable, IP65, long service life even in harsh environments
• Ex(p) for Zones 1 and 2 (in accordance with 94/9/EC (ATEX 2G and ATEX 3G), and Class I Div 2 (CSA) Ex(n)

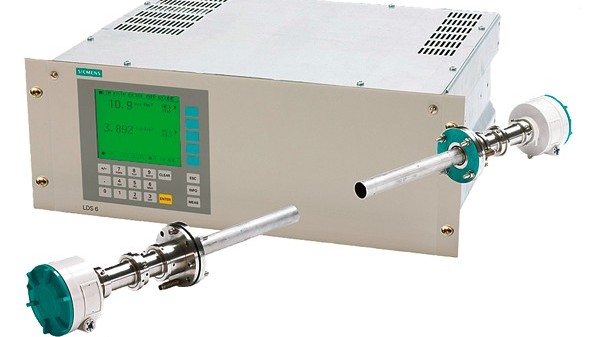

LDS 6
Laser Diode Gas Analyzer

The in-situ gas analyzer LDS 6 is characterized by a high availability and unique analytical selectivity and is optimally suitable for numerous applications. One or two signals from up to three measuring points are processed simultaneously by the central analyzer unit. The sensors are designed for operation under harsh environmental conditions and contain a minimum of electrical components.

Benefits:
• Little installation effort
• Minimum maintenance requirements
• Extremely rugged design
• High long-term stability through built-in, maintenance-free reference gas cell, field calibration is unnecessary
• Real-time measurements

SIPROCESS UV600
the Extractive UV Gas Analytics

The SIPROCESS UV600 is a specialist in extremely selective NO measurements with small measuring ranges. As an all-round device, it is also suitable for other UV-active gases such as NO2, SO2, and H2S. Thanks to its spectral range, no cross-sensitivities to CO2 and H2O are to be expected. Innovative signal processing and highly stable detectors ensure outstanding long-term stability and compensate for drift and influencing effects. With state-of-the-art electronics and software, the SIPROCESS UV600 has the necessary interfaces for remote monitoring from a network and for connecting to process control systems.

Benefits:
• Simultaneous measurement of NO and NO2 with subsequent compilation.
• NO2 converters or CLD analyzers are therefore not required. This means:
• Lower maintenance effort (no converter function check)
• Reduced operating costs because no additional equipment is required, such as an ozone generator and the like
• Measurement in the UV range
• Measurement not effected by H2O and CO2
• Very low SO2 and NO measuring ranges possible
• UV Resonance Absorption Spectrometry (UVRAS)
• Measurement of very low NO concentrations: Measuring range 10 ppm
• Very low cross-sensitivity to other gases
• Very long service life of the UV light source
• Low drift and high stability through four-channel measuring method with double quotient calculation
• True reference measurement for drift-free, stable measurements
• All modules “temperature controlled,” regardless of ambient temperature fluctuations
• Optional calibration device
• Filter wheel with test cells that can be swiveled into the beam path for calibration; no test gases required
• Calibration: manual or automatic

UV500
ONLINE WATER ANALYSER

The UV500 is a on-line water analyser based on a high resolution UV-visible spectrograph.

• 2048 pixels high resolution spectrograph scanning wavelengths from 180 nm to 750 nm is the master part of the UV500. Direct absorbance measurement for UV254, COD, BOD, TOC, NO3, Colour PO4 and Cr VI brings fast and stable measurements with a simple hydraulic circuit. Factory predefined or local multi-point calibration allows to get readings of COD, BOD and TOC under the UV alternative method for compatible applications. UV spectroscopy brings faster results than conventional methods like COD, BOD, TOC with much less maintenance once the correlation is dertermined.
• An additional circuit allows the measurement of ammonia and hydrogen sulphide on the gas phase after a stripping step. This unique method allows measurements on extremely turbid or coloured samples like activated sludge as the gas phase is not affected. A fast Fourier transform (FFT) brings an exceptional selectivity and no interference has never been reported after years of operation on many different applications.
• The patented flow cell allows very high level of suspended solid without clogging. The turbidity is automatically compensated by a dual-wavelength method.
• The UV source is a xenon flash lamp specified for 10^9 flashes that corresponds to more than 10 years of life time with one measurement every minute.
• Physico-chemical measurements like pH, ORP, dissolved oxygen, conductivity can be added to the internal measurements by using external probes. The dissolved oxygen probe is based on fluorescence method for a lower maintenance and higher stability.

UV300-5D
ONLINE WATER ANALYSER FOR DRINKING WATER

The UV300-5D is a pre-defined configuration of the UV300 analyser dedicated to drinking water monitoring.

It offers the possibility to monitor simultaneously FIVE parameters :
• Total residual chlorine
• Turbidity
• pH
• Conductivity
• Temperature

All this is done by a single unit that allows high performance measurements at a cost effective price. An automatic cleaning system maintains clean the flow cell and also make an auto-zero that guaranties the absence of long term drift.

UV VIS200
ONLINE WATER ANALYSER

UV-VIS200 Full spectrum probe

• FULL SPECTRUM UV-VIS MEASUREMENT

The probe calculates the full UV-Vis absorbance spectrum of the water sample. Different algorithms are available to extract the concentration of the different compounds absorbing in the UV or visible range.

• USER-FRIENDLY INTERFACE & COMMUNICATION

The colour touch screen and intuitive interface available in 8 different languages makes very easy to test or configure the probe. A USB port enable to download on any USB key the last 24hours recorded measurements as well as a diagnostic file containing the configuration and useful information for remote troubleshooting. The software of the controller can be upgraded by connecting a USB key. The RS232 port and the RS485 port support the MODBUS protocol to transmit each measuring channel value to a SCADA system. Additional parameters are available like status code, error code, calibration values. The full UV-Vis absorbance spectrum can also be read under the Modbus protocol as a table of 512 float values with starting wavelength and pitch.

• AUTOMATIC CLEANING

The EL200 delivers a free potential contact to drive a solenoid valve on compressed air to clean the probe. It can drive alternately an air compressor if no air network is available on site. The period and cleaning time are adjustable to adapt to different applications.

CEM500L
ONLINE GAS ANALYSER

The CEM500-L is an extractive online gas analyser for Continuous emission monitoring (CEMS).

OPTICAL PRINCIPLE - MAIN METHOD : UV SPECTROSCOPY
• Several gases can be measured simultaneously thanks to the UV spectroscopy method by using different wavelengths and algorithms. For gases with a periodic absorption spectrum such as NH3, SO2, NO, CS2 or acetylene, an algorithm based on FFT (Fast Fourier Transform) guarantees a very good selectivity of measurement. The solid-state design due to the UV spectroscopy gives a high reliability of the measuring system with quite no maintenance.
• The UV lamp is a xenon flash lamp with a high lifetime and without thermal effect that may generate measurement drift.
• The gas flow cell has two quartz windows to transmit the UV light throught the measured gas. The standard path length of the flow cell is 1200 mm.
• The spectrograph is based on a concave grating to minimize the optical parts and the spectrum is read on a 2048 pixel CCD with a resolution of 0.1nm.
• A zero is done automatically on zero air or nitrogen with an adjustable period (if possible every 2 or 4 hours but once per day remains acceptable).
• The absorbance spectrum is calculated from the reference spectrum acquired during the zero step.

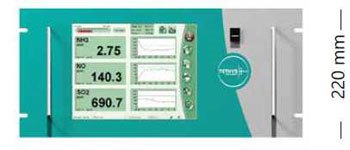

EXM 500L
ONLINE GAS ANALYSER

The EXM500-L is an extractive online gas analyser for Continuous emission monitoring (CEMS).

OPTICAL PRINCIPLE - MAIN METHOD : UV SPECTROSCOPY
• Several gases can be measured simultaneously thanks to the UV spectroscopy method by using different wavelengths and algorithms. For gases with a periodic absorption spectrum such as NH3, SO2, NO, CS2 or acetylene, an algorithm based on FFT (Fast Fourier Transform) guarantees a very good selectivity of measurement. The solid-state design due to the UV spectroscopy gives a high reliability of the measuring system with quite no maintenance.
• The UV lamp is a xenon flash lamp with a high lifetime and without thermal effect that may generate measurement drift.
• The gas flow cell has two quartz windows to transmit the UV light throught the measured gas. The standard path length of the flow cell is 1200 mm.
• The spectrograph is based on a concave grating to minimize the optical parts and the spectrum is read on a 2048 pixel CCD with a resolution of 0.1nm.
• A zero is done automatically on zero air or nitrogen with an adjustable period (if possible every 2 or 4 hours but once per day remains acceptable).
• The absorbance spectrum is calculated from the reference spectrum acquired during the zero step.

J22
Moisture Analyzer

SpectraSensors J22 Gas Analyzer for H2O is extremely reliable and tailored for the needs of the natural gas industry. The sensor measures gas using a patented tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.

SS3000
Dual Channel Analyzer

SpectraSensors SS3000 Dual Channel Gas Analyzer is capable of measuring moisture and carbon dioxide in this cost effective measurement system, which enhances savings by incorporating two sensors in one.

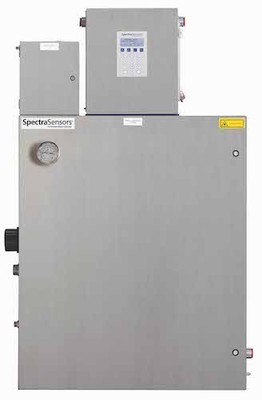

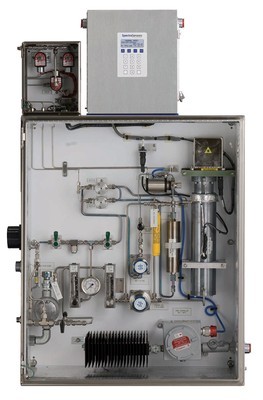

SS2100
Gas Analyzer

SpectraSensors SS2100 Gas Analyzers are exceptionally reliable for measuring trace gas components using Tunable Laser Diode (TDL) technology. TDL absorption spectroscopy is a high-resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
The SS2100 is certified for CSA Class I Division 2.

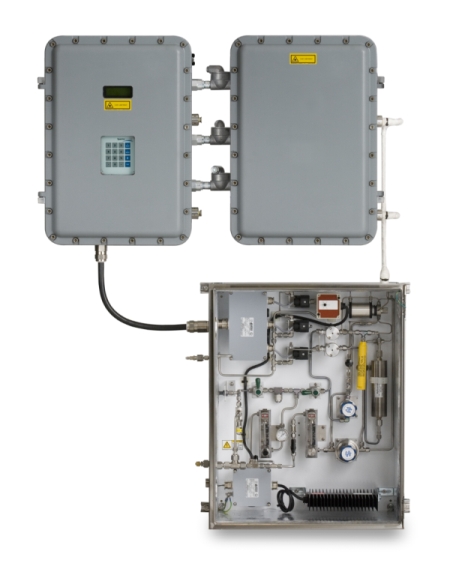

SS2100 ATEX
Zone 2 Analyzer

SpectraSensors SS2100a Process Gas Analyzers are exceptionally reliable for measuring trace gas components using Tunable Laser Diode (TDL) technology. TDL absorption spectroscopy is a high-resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers. The SS2100a is certified for ATEX.

Kaiser Raman Optograf
Process Analyzer

The Kaiser Raman Optograf process analyzer is an industry-leading, turn-key, laser-based analyzer that provides quantitative chemical composition measurements using Raman spectroscopy. The design of the Optograf process analyzer incorporates customer requirements for serviceability and hazard-area certification, provides a compact footprint, and minimizes utilities consumption. The high optical efficiency of the Optograf process Raman analyzer makes it ideal for measurement of gas-phase samples.
