PULS is the only company worldwide focused entirely on the development and production of DIN rail power supplies. We concentrate our engineering knowledge, resources and energy on one goal: To be the best in this technology. As a result of this focus, we set standards in terms of efficiency and quality that delight our customers.

DIN rail power supplies for 1-phase system


CP5.121

CP5.121

DC output: 12-15Vdc, 10-8A, 120W
Input: AC 100-240V (-15% /+10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP5.241

CP5.241

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-240V (-15% /+10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP5.241-C1

CP5.241-C1

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-240V (-15% /+10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP5.241-M1

CP5.241-M1

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100 - 240 V (-15 %/ +10 %)
Dimensions(WxHxD): 32x124x102mm

CP5.241-S1

CP5.241

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-240V (-15% /+10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP5.241-S2

CP5.241-S2

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-240V (-15% / +10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP5.242

CP5.242

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-240V (-15%/ +10%)
110V-300V (± 20%)
Dimensions(WxHxD): 32x124x102mm

CP5.481

CP5.481

DC output: 48-56Vdc, 2.5-2.1A, 120W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 32x124x102mm

CP10.121

CP10.121

DC output: 12-15Vdc, 16-12.8A, 192W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.122

CP10.122

DC output: 12-15Vdc, 16-12.8A, 192W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241

CP10.241

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241-C1

CP10.241-C1

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%),
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241=ETC

CP10.241-ETC

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP10.241

CP10.241-M1

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (± 20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241-S1

CP10.241-S1

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241-S2

CP10.241-S2

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.242

CP10.242

DC output: 24-28Vdc, 10-8.6A, 40W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.248

CP10.248

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP10.361

CP10.361

DC output: 36-42Vdc, 6.7-5.7A, 240W
Input: AC 100-240V (±15%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.481

CP10.481

DC output: 48-56Vdc, 5.4-4.6A, 260W
Input: AC 100-240V (±10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP20.241

CP20.241

DC output: 24-28Vdc, 20-17.1A, 480W
Input:AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-C1

CP20.241-C1

DC output: 24-28Vdc, 20-17.1A, 480 W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-ETC

CP20.241-ETC

DC output: 24-28Vdc, 20-17.1A, 480 W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-M1

CP20.241-M1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-S1

CP20.241-S1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-S2

CP20.241-S2

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (± 20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-V1

CP20.241-V1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.242

CP20.242

DC output: 24-28Vdc, 20-17.1A, 480W
Input:AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.242-IOL

CP20.242-IOL

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.248

CP20.248

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.481

CP20.481

DC output: 48-56Vdc, 10-8.6A, 480W
Input: AC 100-240V (±10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.481-ETC

CP20.481-ETC

DC output: 48-56Vdc, 10-8.6A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CPS20.121

CPS20.121

DC output: 12-15Vdc, 30-27A, 405W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 65x124x127mm

CPS20.241

CPS20.241

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 65x124x127mm

CPS20.241-C1

CPS20.241-C1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 100-240V (-15 % / +10 %)
Dimensions(WxHxD): 65x124x127mm

CPS20.361

CPS20.361

DC output: 36-42Vdc, 13.3-11.4A, 480W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 65x124x127mm

CPS20.481

CPS20.481

DC output: 48-56Vdc, 10-8.6A, 480W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 65x124x127mm

CS3.241

CS3.241

DC output: 24-28Vdc, 3.3-2.7A, 80W
Input: AC 100-240V (±10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 32x124x102mm

CS5.241

CS5.241

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 32x124x117mm

CS5.241-C1

CS5.241-C1

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 32x124x117mm

CS5.241-S1

CS5.241-S1

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 32x124x117mm

CS5.243

CS5.243

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-120V (±10%)
Dimensions(WxHxD): 32x124x117mm

CS5.244

CS5.244

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 32x124x117mm

CS10.241

CS10.241

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 60x124x117mm

CS10.241-S1

CS10.241-S1

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 60x124x117mm

CS10.242

CS10.242

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 60x124x117mm

CS10.243

CS10.243

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-120V (±10%)
Dimensions(WxHxD): 60x124x117mm

CS10.244

CS10.244

DC output: 24-28 Vdc, 10-8.6A, 240W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 60x124x117mm

CS10.481

CS10.481

DC output: 48-52Vdc, 5-4.6A, 240W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 60x124x117mm

ML15.051

ML15.051

DC output: 5-5.5Vdc, 3-2.7A, 15W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 23x75x91mm

ML15.121

ML15.121

DC output: 12-15Vdc, 1.3-1A, 15W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 23x75x91mm

ML15.241

ML15.241

DC output: 24-28Vdc, 0.6-0.5A, 15W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 23x75x91mm

Ml30.100

ML30.100

DC output: 24-28Vdc, 1.3-1.1A, 30W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML30.101

ML30.101

DC output: 5-5.5Vdc, 5A, 25W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML30.102

ML30.102

DC output: 10-12Vdc, 3-2.5A, 30W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

Ml30.106

ML30.106

DC output: 12-15Vdc, 2.5-2.5A, 36W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML30.241

ML30.241

DC output: 24-28Vdc, 1.3-1.1A, 30W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 23x75x91mm

ML50.100

ML50.100

DC output: 10-12Vdc, 3-2.5A, 30W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

Ml50.101

ML50.101

DC output: 24-28Vdc, 2.1-1.8A, 50W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML50.102

ML50.102

DC output: 12-15Vdc, 4.2-3.4A, 50W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML50.105

ML50.105

DC output: 48-56Vdc, 1.1A, 50W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

Ml50.109

ML50.109

DC output: 24-28Vdc, 2.1-1.8A, 50W
Input: AC 100-240V
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML50.111

ML50.111

DC output: 24-28Vdc, 2.1-1.8A, 50W
Input: AC 100-240V
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x98mm

ML60.121

ML60.121

DC output: 12-15Vdc, 4.5-3.6A, 54W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

Ml60.122

ML60.122

DC output: 12-15Vdc, 4.5-3.6A, 54W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

ML60.241

ML60.241

DC output: 24-28Vdc, 2.5-2.1A, 60W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x98mm

ML60.242

ML60.242

DC output: 24-28Vdc, 2.5-2.1A, 60W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 45x75x91mm

Ml70.100

ML70.100

DC output: 24-28Vdc, 3-2.6A, 72W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 290V (-25% / +30%)
Dimensions(WxHxD): 45x75x91mm

ML95.100

ML95.100

DC output: 24-28Vdc, 4-3.4A, 95W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 290V (-25% / +30%)
Dimensions(WxHxD): 73x75x103mm

ML100.100

ML100.100

DC output: 24-28Vdc, 4.2-3.6A, 100W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 73x75x103mm

Ml100.102

ML100.102

DC output: 12-15Vdc, 7.5-6A, 90W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 290V (-25% / +30%)
Dimensions(WxHxD): 73x75x103mm

ML100.105

ML100.105

DC output: 48-56Vdc, 2.1-1.8A, 100W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 290V (-25% / +30%)
Dimensions(WxHxD): 73x75x103mm

Ml100.109

ML100.109

DC output: 24-28Vdc, 4.2-3.6A, 100W
Input: AC 100-120 / 220-240V (-15% / +10%)
DC 290V (-25% / +20%)
Dimensions(WxHxD): 73x75x103mm

PIC120.241C

PIC120.241C

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 39x124x124mm

PIC120.241D

PIC120.241D

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 100-120 / 200-240V (±10%)
Dimensions(WxHxD): 39x124x124mm

PIC120.242C

PIC120.242C

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 39x124x124mm

PIC240.241C

PIC240.241C

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 49x124x124mm

PIC120.241D

PIC240.241D

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 49x124x124mm

PIC480.241C

PIC480.241C

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 49x124x124mm

PIC480.241C-C1

PIC480.241C-C1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: AC 200-240V (±10%)
Dimensions(WxHxD): 49x124x124mm

PIC480.241D

PIC480.241D

DC output: 24-28Vdc, 20A, 480W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 59x124x127mm

PIC480.481D

PIC480.481D

DC output: 48-56Vdc, 10-8.6A, 480W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 59x124x127mm

PIM36.241

PIM36.241

DC output: 24-28Vdc, 1.5-1.2A, 36W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 22.5x90x91mm

PIM60.121

PIM60.121

DC output: 12-15Vdc, 5-4A, 60W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM60.125

PIM60.125

DC output: 12-15Vdc, 5-4A, 60W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM60.241

PIM60.241

DC output: 24-28Vdc, 2.5-2.1A, 60W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM60.245

PIM60.245

DC output: 24-28Vdc, 2.5-2.1A, 60W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM90.241

PIM90.241

DC output: 24-28Vdc, 3.8-3.2A, 90W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM90.245

PIM90.245

DC output: 24-28Vdc, 3.8-3.2A, 90W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

PIM90.245-L1

PIM90.245-L1

DC output: 24-28Vdc, 3.8-3.2A, 90W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 36x90x91mm

QS3.241

QS3.241

DC output: 24-28Vdc, 3.4-3 , A80W
Input: AC 100-240V (±15%)
DC 110 V-125V (-20% / +25%)
Dimensions(WxHxD): 32x124x102mm

QS5.241

QS5.241

DC output: 24-28Vdc, 5-4.5A, 120W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 40x124x117mm

QS5.241-A1

QS5.241-A1

DC output: 24-28Vdc, 5-4.5A, 120W
Input: AC 100-240V (-15% / +10%)
DC 100V-300V (±20%)
Dimensions(WxHxD): 40x124x117mm

QS10.121

QS10.121

DC output: 12-15Vdc, 15-13.5A, 180W
Input: AC 100-240V (±15%)
DC 110 V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.241

QS10.241

DC output: 24-28Vdc, 10-9A, 240W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.241-A1

QS10.241-A1

DC output: 24-28Vdc, 10-9A, 240W
Input: AC 100-240V (±15%)
DC 110 V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.241-C1

QS10.241-C1

DC output: 24-28Vdc, 10-9A, 240W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.241-D1

QS10.241-D1

DC output: 24-28Vdc, 10-9A, 240W
Input: AC 100-240V (±15%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 60x124x117mm

QS10.301

QS10.301

DC output: 28-32Vdc, 8.6-7.5A, 240W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.481

QS10.481

DC output: 48-56Vdc, 5-4.3A, 240W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS10.481-D1

QS10.481-D1

DC output: 48-56Vdc, 5-4.3A, 240W
Input: AC 100-240V (±15%)
DC 110V-300V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

QS20.241

QS20.241

DC output: 24-28Vdc, 20-17A, 480W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 82x124x127mm

QS20.241-A1

QS20.241-A1

DC output: 24-28Vdc, 20-17A, 480W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 82x124x127mm

QS20.241-C1

QS20.241-C1

DC output: 24-28Vdc, 20-17A, 480W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 82x124x127mm

QS20.244

QS20.244

DC output: 24-28Vdc, 20-17A, 480W
Input: AC 200-240V (±15%)
Dimensions(WxHxD): 70x124x127mm

QS20.361

QS20.361

DC output: 36-42Vdc, 13.3-11.4A, 480W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 82x124x127mm

QS20.481

QS20.481

DC output: 48-55Vdc, 10-8.7A, 480W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 82x124x127mm

QS40.241

QS40.241

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.241-C2

QS40.241-C2

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.244

QS40.244

DC output: 24-28Vdc, 40-34.4A, 960W
Input: AC 200-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.361

QS40.361

DC output: 36-42Vdc, 26.7-22.9A, 960W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.481

QS40.481

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.484

QS40.484

DC output: 24-28Vdc, 40-34.4A, 960W
Input: AC 200-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

SP960.241-S

SP960.241-S

DC output: 24-28Vdc, 48-41.1A, 960W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 96x124x132mm

DIN rail power supplies for 3-phase system


CT5.121

CT5.121

DC output: 12-15Vdc, 8-6.4A, 96W
Input: AC 380-480V (-15% / +20%)
Dimensions(WxHxD): 40x124x117mm

CT5.241

CT5.241

DC output: 24-28Vdc, 5-4.3A, 120W
Input: AC 380-480V (-15% / +20%)
Dimensions(WxHxD): 40x124x117mm

QS40.481

QS40.481

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 100-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

QS40.484

QS40.484

DC output: 24-28Vdc, 40-34.4A, 960W
Input: AC 200-240V (-15% / +10%)
Dimensions(WxHxD): 125x124x127mm

SP960.241-S

SP960.241-S

DC output: 24-28Vdc, 48-41.1A, 960W
Input: AC 100-240V (±10%)
Dimensions(WxHxD): 96x124x132mm

CT10.241

CT10.241

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 380-480V (-15% / +20%)
Dimensions(WxHxD): 62x124x117mm

CT10.241-C1

CT10.241-C1

DC output: 24-28Vdc, 10-8.6A, 240W
Input: AC 380-480V (-15% / +20%)
Dimensions(WxHxD): 62x124x117mm

CT10.481

CT10.481

DC output: 48-56Vdc, 5-4.3A, 240W
Input: AC 380-480V (-15% / +20%)
Dimensions(WxHxD): 62x124x117mm

ML90.200

ML90.200

DC output: 24-28Vdc, 3.8-3.2A, 90W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 73x75x103mm

ML100.200

ML100.200

DC output: 24-28Vdc, 4.2-3.6A, 100W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 73x75x103mm

QT20.241

QT20.241

DC output: 24-28Vdc, 20-17.5A, 480W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 65x124x127mm

QT20.241-C1

QT20.241-C1

DC output: 24-28Vdc, 20-17.5A, 480W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 65x124x127mm

QT20.361

QT20.361

DC output: 36-42Vdc, 13.3-11.4A, 480W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 65x124x127mm

QT20.481

QT20.481

DC output: 48-55Vdc, 10-8.7A, 480W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 65x124x127mm

QT40.241

QT40.241

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 380-480V (-15% / +10%)
Dimensions(WxHxD): 110x124x127mm

QT40.241-B2

QT40.241-B2

DC output: 15-28.5Vdc, 40-33.7A, 960W
Input: AC 380-480V
Dimensions(WxHxD): 110x124x143mm

QT40.241-IOL

QT40.241-IOL

DC output: 24-28.5Vdc, 40-33.7A, 960W
Input: AC 380-480V (-15% / +10%)
Dimensions(WxHxD): 110x124x143mm

QT40.242

QT40.242

DC output: 24-28Vdc, 40-34.3A, 960W
Input: AC 380-480V (-15% / +10%)
Dimensions(WxHxD): 110x124x127mm

QT40.361

QT40.361

DC output: 36-42Vdc, 26.7-22.9A, 960W
Input: AC 380-480V (-15% / +10%)
Dimensions(WxHxD): 110x124x127mm

QT40.481

QT40.481

DC output: 48-54Vdc, 20-17.8A, 960W
Input: AC 380-480V (-15% / +10%)
Dimensions(WxHxD): 110x124x127mm

XT40.241

XT40.241

DC output: 24 Vdc, 40A, 960W
Input: AC 400V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.242

XT40.242

DC output: 24Vdc, 40A, 960W
Input: AC 480V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.361

XT40.361

DC output: 36Vdc, 26.6A, 960W
Input: AC 400V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.362

XT40.362

DC output: 36Vdc, 26.6A, 960W
Input: AC 480V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.481

XT40.481

DC output: 48Vdc, 20A, 960W
Input: AC 400V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.482

XT40.482

DC output: 48Vdc, 20A, 960W
Input: AC 480V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.721

XT40.721

DC output: 72Vdc, 13.3A, 960W
Input: AC 400V (±15%)
Dimensions(WxHxD): 96x124x159mm

XT40.722

XT40.722

DC output: 72Vdc, 13.3A, 960W
Input: AC 480V (±15%)
Dimensions(WxHxD): 96x124x159mm

1-phase IP54, IP65 and IP67 power supply


FPS300.241-002-101

FPS300.241-002-101

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 182x183x59mm

FPS300.245-016-101

FPS300.245-016-101

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.245-034-105

FPS300.245-034-105

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.245-047-103

FPS300.245-047-103

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.245-047-111

FPS300.245-047-111

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.245-049-102

FPS300.245-049-102

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.245-049-112

FPS300.245-049-112

DC output: 24-28Vdc, 12.5-10.7A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPS300.246-049-102

FPS300.246-049-102

DC output: 24-28Vdc, 15-12.9A, 360W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

1-phase IP54, IP65 and IP67 power supply with highline input voltage

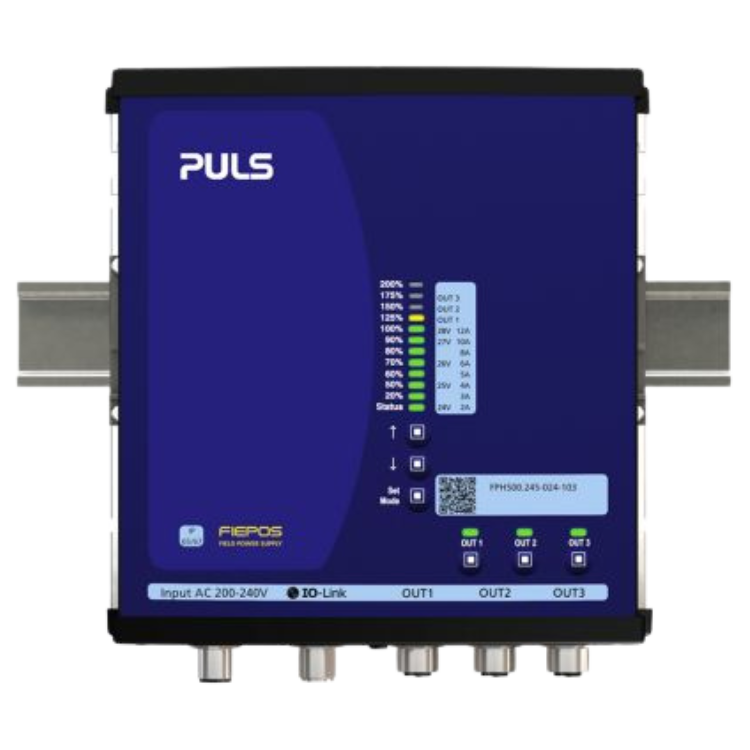

FPH500.245-024-103

FPH500.245-024-103

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 200-240V (-15% / +10%)
DC 200V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

FPH500.245-047-104

FPH500.245-047-104

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 200-240V (-15% / +10%)
DC 200V-300V (±20%)
Dimensions(WxHxD): 181x183x59mm

3-phase IP54, IP65 and IP67 power supply


FPT300.242-002-101

FPT300.242-002-101

DC output: 24-24Vdc, 15-15A, 360W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 182x183x59mm

FPT300.242-008-102

FPT300.242-008-102

DC output: 24Vdc, 12A, 300W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 182x272x70mm

FPT300.246-042-101

FPT300.246-042-101

DC output: 24-28Vdc, 12.5-10.7A, 300W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 182x272x70mm

FPT500.241-001-102

FPT500.241-001-102

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.241-002-101

FPT500.241-002-101

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.241-006-104

FPT500.241-006-104

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.241-010-108

FPT500.241-010-108

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.245-018-103

FPT500.245-018-103

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.245-034-105

FPT500.245-034-105

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.245-034-106

FPT500.245-034-106

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.245-062-117

FPT500.245-062-117

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

FPT500.247-064-102

FPT500.247-064-102

DC output: 24-28Vdc, 25-21.4A, 600W
Input: AC 380-480V (±15%)
Dimensions(WxHxD): 181x183x59mm

DC/DC converter


CD5.051

CD5.051

DC output: 5-5.5Vdc, 10-10A, 50W
Input: DC 18V-32.4V
Dimensions(WxHxD): 32x124x102mm

CD5.121

CD5.121

DC output: 12-15Vdc, 8-6.4A, 96W
Input: DC 24V (-25% / +35%)
Dimensions(WxHxD): 32x124x102mm

CD5.241

CD5.241

DC output: 24-28Vdc, 5-4.3A, 120W
Input: DC 24V (-25% / +35%)
Dimensions(WxHxD): 32x124x102mm

CD5.241-L1

CD5.241-L1

DC output: 24Vdc, 3.8A, 92W
Input: DC 24V (-40% / +35%)
Dimensions(WxHxD): 32x124x102mm

CD5.121

CD5.241-S1

DC output: 24-28Vdc, 5-4.3A, 120W
Input: DC 24V (-25% / +35%)
Dimensions(WxHxD): 32x124x102mm

CD5.242

CD5.242

DC output: 24-28Vdc, 5-4.3A, 120W
Input: DC 48V (±25%)
Dimensions(WxHxD): 32x124x102mm

CD5.243

CD5.243

DC output: 24-28Vdc, 4-3.4A, 96W
Input: DC 12V (-30% / +35%)
Dimensions(WxHxD): 32x124x102mm

CD10.241

CD10.241

DC output: 24-28Vdc, 10-8.6A, 240W
Input: DC 24V (-25% / +46%)
Dimensions(WxHxD): 42x124x117mm

CD10.242

CD10.242

DC output: 24-28Vdc, 10-8.6A, 240W
Input: DC 48V (±25%)
Dimensions(WxHxD): 42x124x117mm

CD10.482

CD10.482

DC output: 48-56Vdc, 5-4.3A, 240W
Input: DC 48V (±25%)
Dimensions(WxHxD): 42x124x117mm

CP10.241-60

CP10.241-60

DC output: 24-28Vdc, 8.3-7.1A, 200W
Input: DC 96V-110V (-30% / +40%)
Dimensions(WxHxD): 39x124x117mm

CD10.242

CPS20.241-60

DC output: 24.5Vdc, 16.3A, 400W
Input: DC 110V (-30% / +40%)
Dimensions(WxHxD): 65x124x127mm

CPS20.241-D1

CPS20.241-D1

DC output: 24-28Vdc, 20-17.1A, 480W
Input: DC 110V-300V (±20%)
Dimensions(WxHxD): 65x124x127mm

CPS20.481-D1

CPS20.481-D1

DC output: 48-56Vdc, 10-8.6A, 480W
Input: DC 110V-300V (±20%)
Dimensions(WxHxD): 65x124x127mm

QS5.241-60

QS5.241-60

DC output: 24-28Vdc, 4.2-3.6A, 100W
Input: DC 110V (-30% / +40%)
Dimensions(WxHxD): 40x124x117mm

QTD20.241

QTD20.241

DC output: 24-28Vdc, 20-17.5A, 480W
Input: DC 600V (-20% / +40%)
Dimensions(WxHxD): 65x124x127mm

Power supply with integrated decoupling function


CP10.241-R1

CP10.241-R1

DC output: 24Vdc, 10A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241-R2

CP10.241-R2

DC output: 24Vdc, 10A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.241-R2-C1

CP10.241-R2-C1

DC output: 24Vdc, 10A, 240W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP10.242-R2

CP10.242-R2

DC output: 24Vdc, 10A, 240W
Input: AC 100-240V (±15%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 39x124x117mm

CP20.241-R1

CP20.241-R1

DC output: 24Vdc, 20A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-R2

CP20.241-R2

DC output: 24Vdc, 20A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.241-R2-C1

CP20.241-R2-C1

DC output: 24Vdc, 20A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.242-R2

CP20.242-R2

DC output: 24Vdc, 20A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 48x124x127mm

CP20.245-R2

CP20.245-R2

DC output: 24Vdc, 20A, 480W
Input: AC 100-240V (-15% / +10%)
DC 110V-150V (±20%)
Dimensions(WxHxD): 48x124x127mm

DeviceNet power supply


QS5.DNET

QS5.DNET

DC output: 24Vdc, 3.8-3.8A, 91W
Input: AC 100-240V (-15% / +10%)
DC 110V-300V (±20%)
Dimensions(WxHxD): 40x124x117mm

QS10.DNET

QS10.DNET

DC output: 24-24.5Vdc, 8-8A, 192W
Input: AC 100-240V (±15%)
DC 110V-150V (-20% / +25%)
Dimensions(WxHxD): 60x124x117mm

Highlight Products from PULS



CP20.241-ETC
Ethercat

CP20.242-IOL
IO-Link

PIM90.245-L1
screw terminals
NEC Class2

QS10.241-A1
conformal coating
ATEX

QT40.241-IOL
IO-Link
